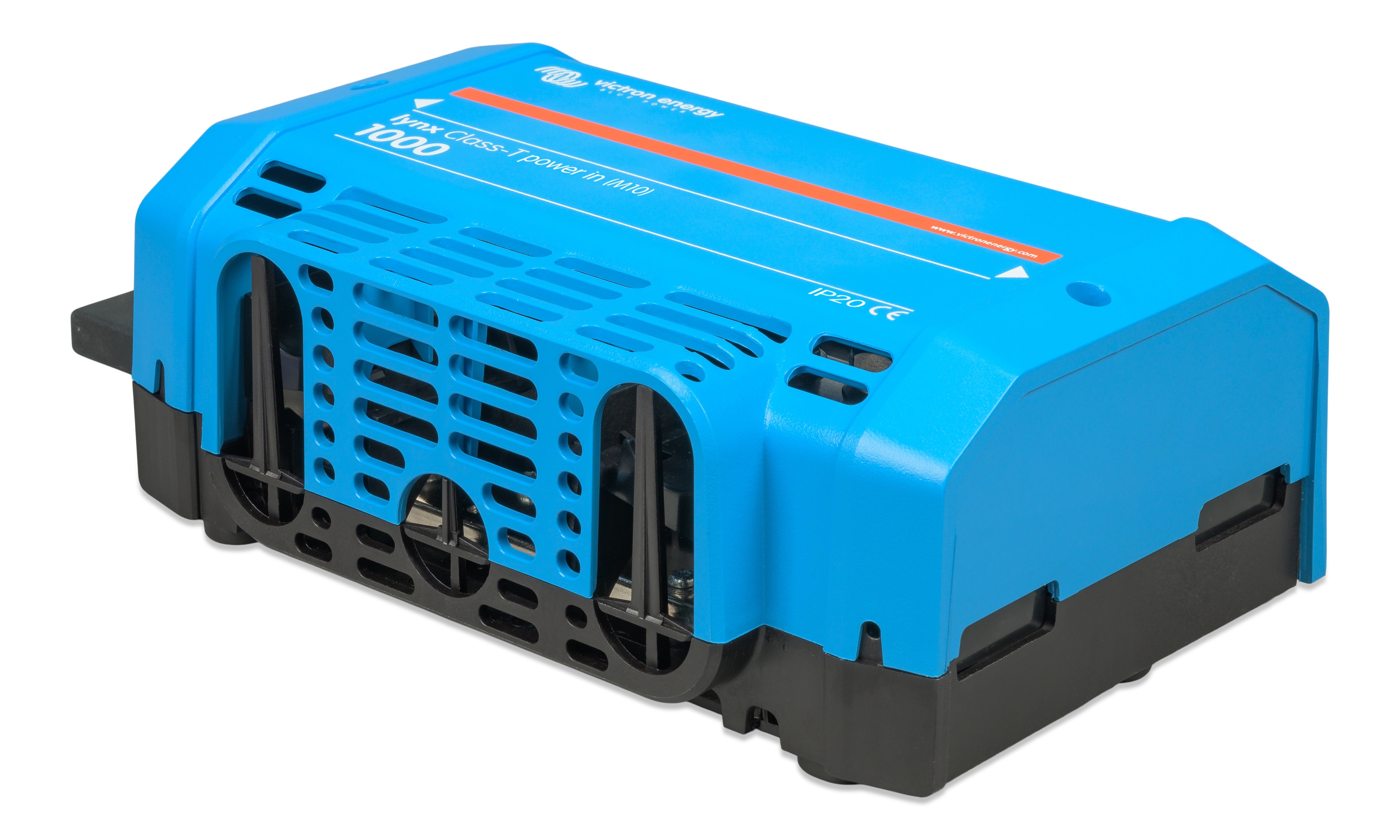

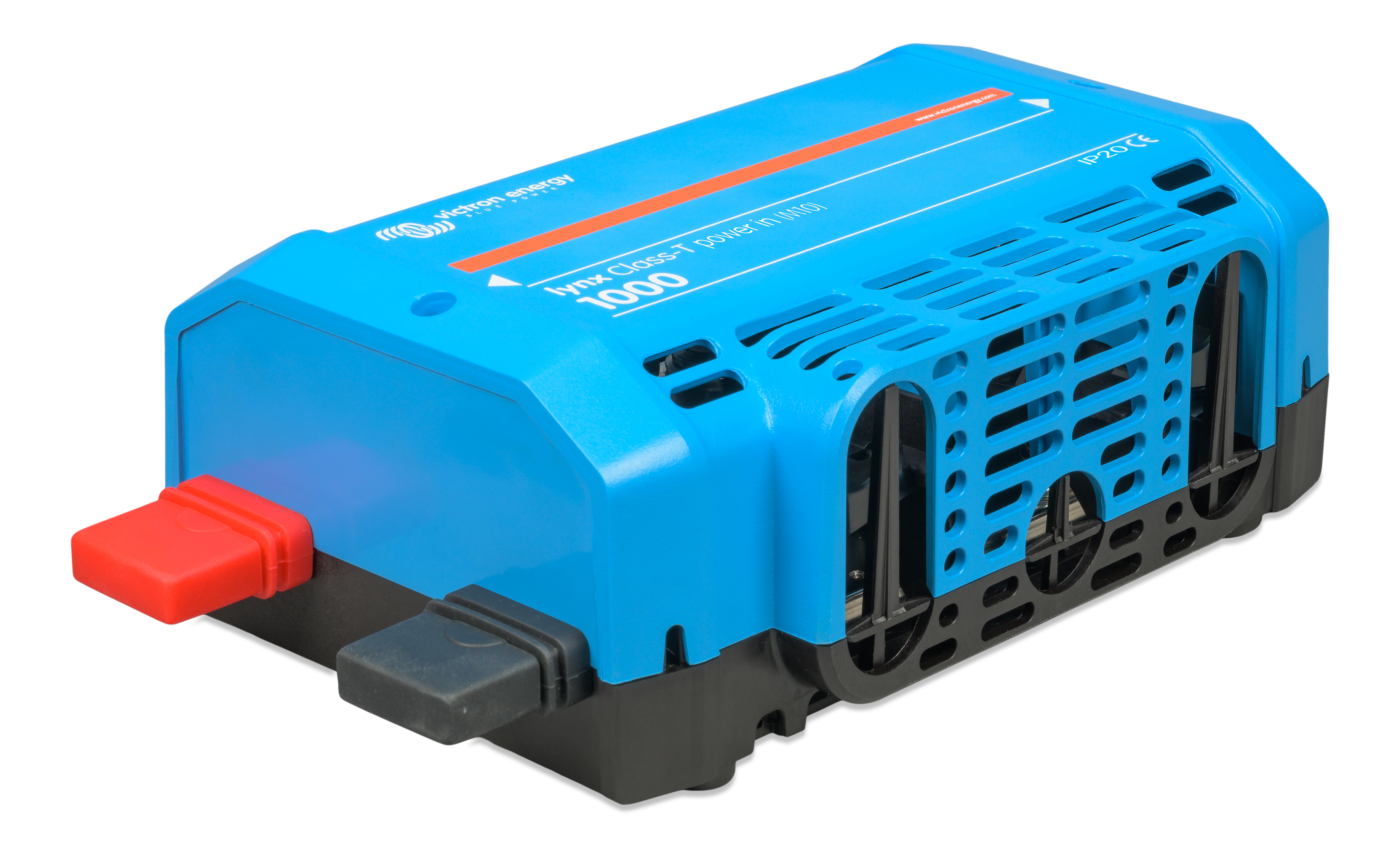

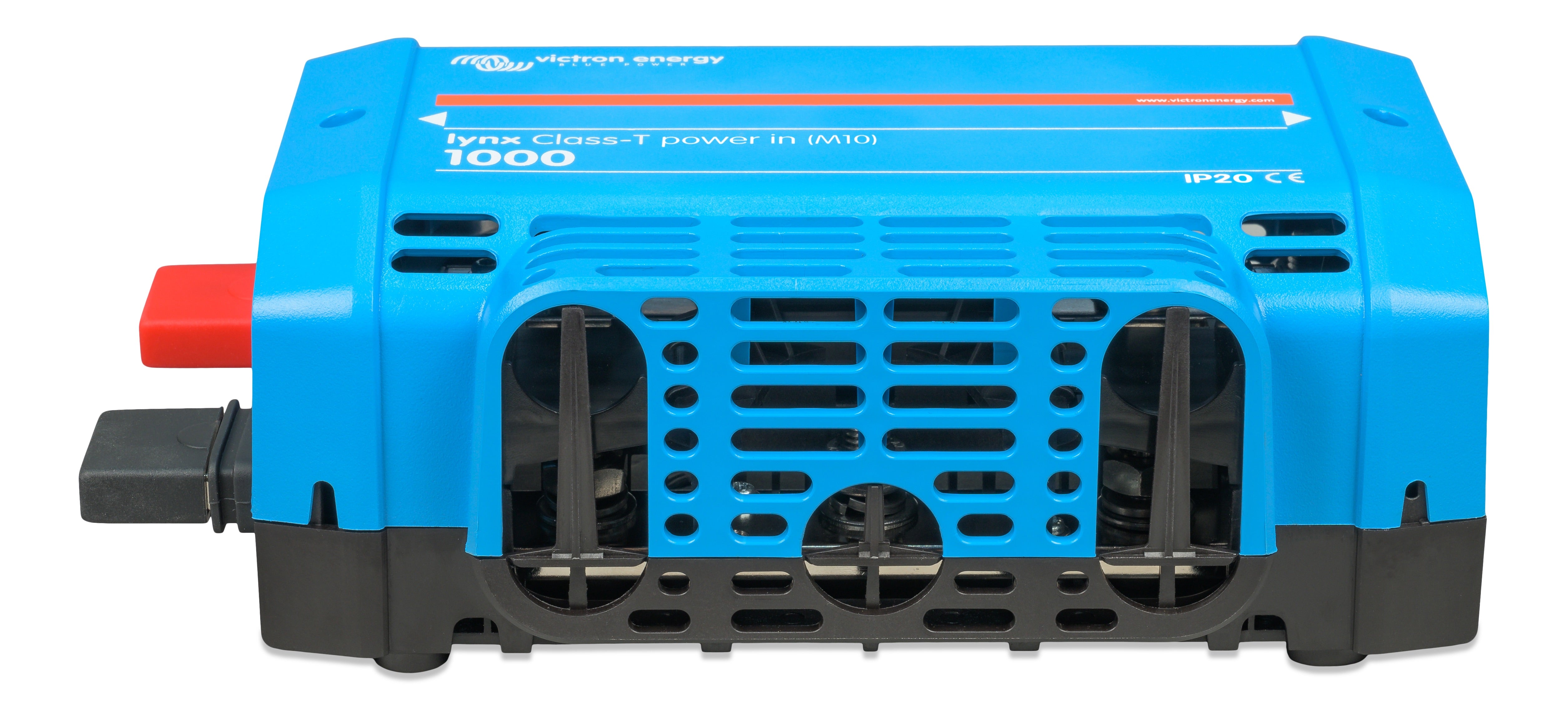

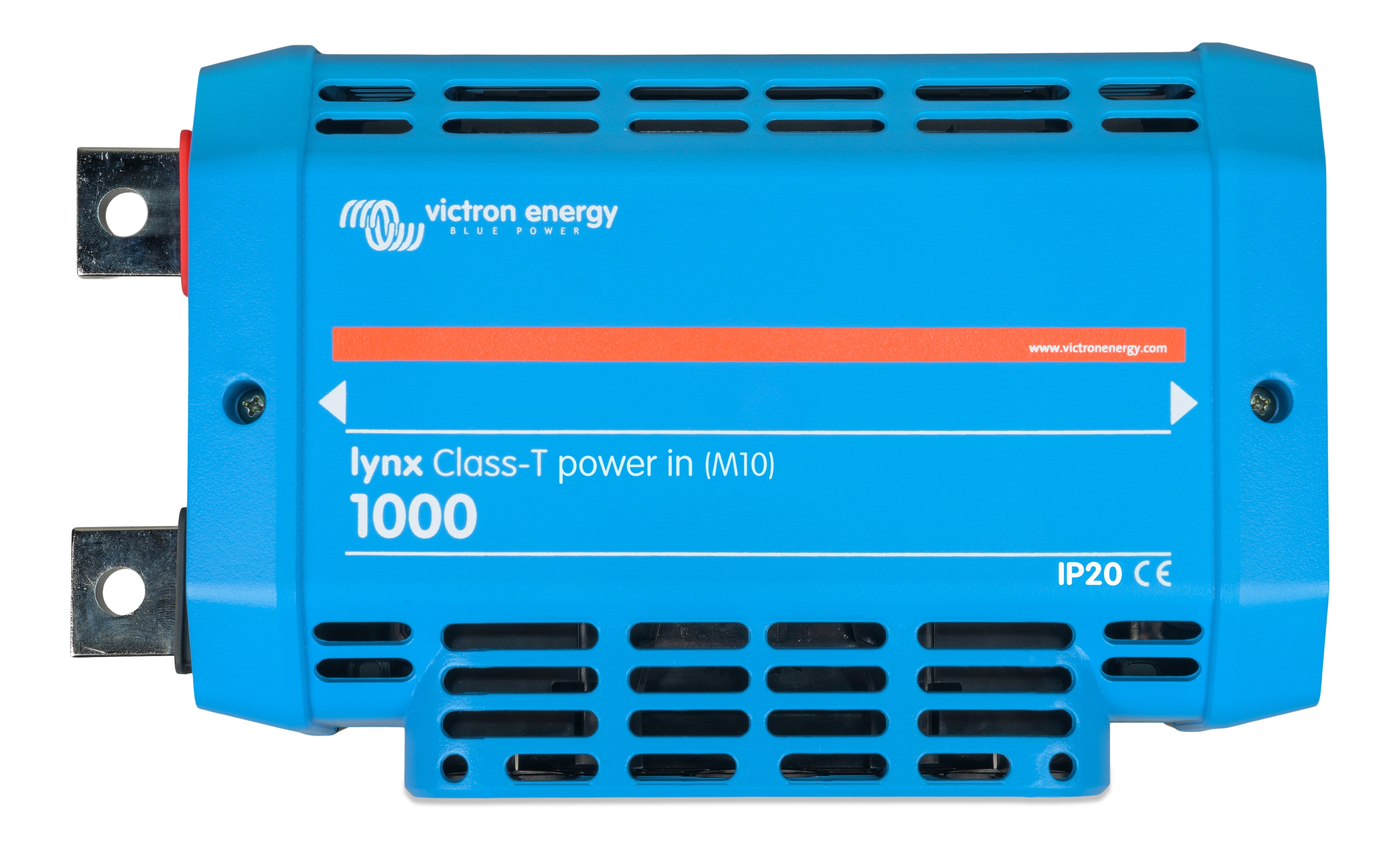

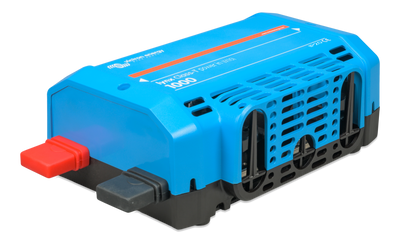

Victron Energy Lynx Class-T Power In (M10) – LYN060404010

The Victron Energy Lynx Class-T Power In (M10) is a premium high current DC busbar and Class-T fuse holder designed specifically for advanced lithium battery systems and high power inverter installations. Built as part of the Victron Lynx modular distribution system, it provides a clean, safe and professional solution for connecting and protecting up to 2 lithium battery banks.

Designed for serious off grid electrical systems including campervans, motorhomes, marine, commercial and industrial applications, the Lynx Class-T Power In integrates positive and negative busbars alongside dedicated Class-T fuse locations for industry leading short circuit protection.

Perfect for pairing with systems such as the Victron MultiPlus-II, Quattro, Lynx Smart BMS and Lynx Distributor, this unit helps create an extremely tidy and scalable DC installation while maintaining the highest levels of safety and serviceability.

At Vanbitious, we use and recommend Class-T protection within larger lithium battery systems due to the extremely fast acting protection they provide in high fault current applications.

Key Features

• Designed for high current lithium battery systems
• Connects and protects up to 2 battery strings

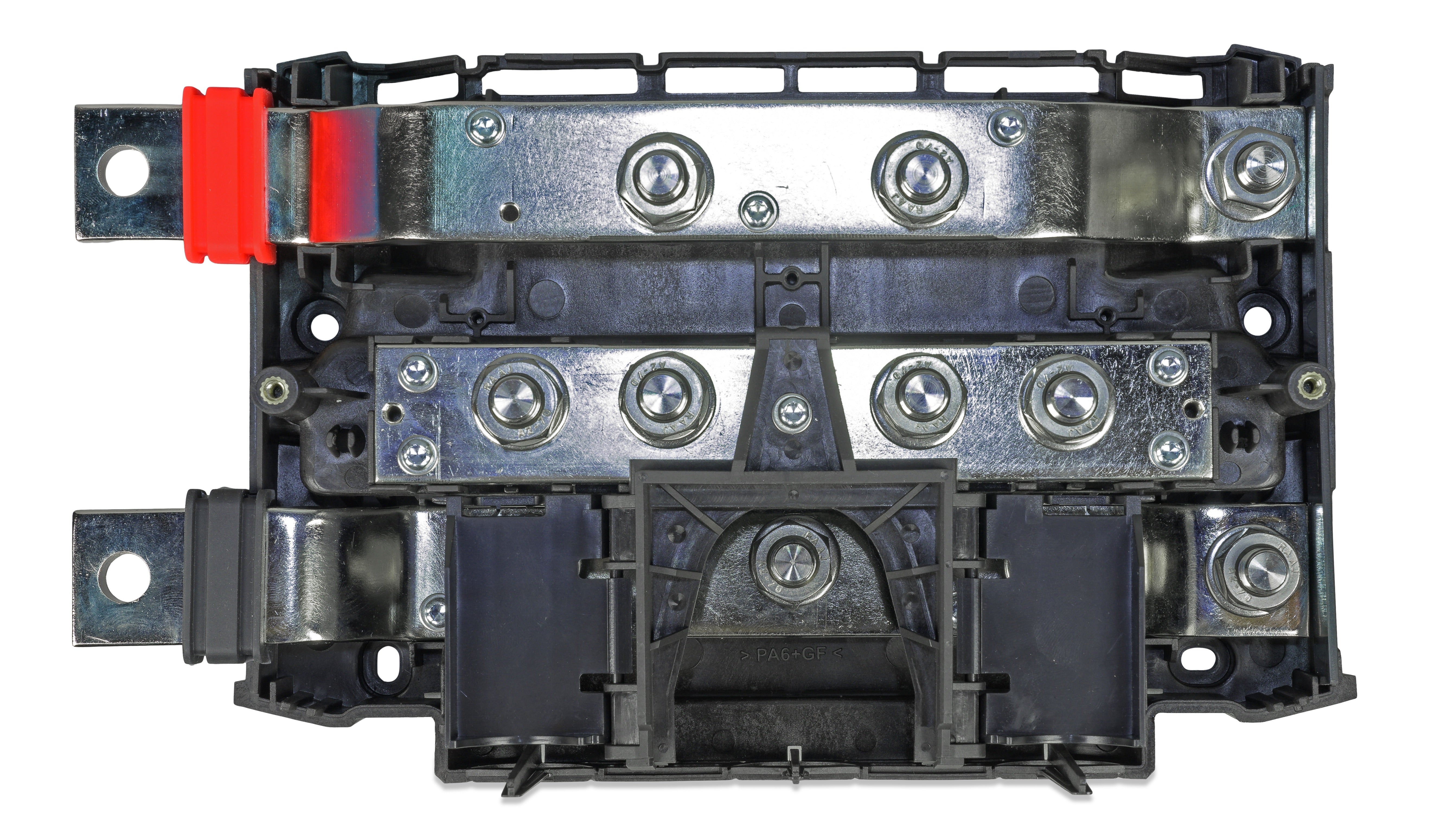

• Integrated positive and negative busbars
• Supports Class-T fuse protection for enhanced safety
• Compatible with 225A, 250A, 350A and 400A Class-T fuses
• Professional modular DC distribution solution
• Seamless integration with the Victron Lynx ecosystem
• Heavy duty tinned copper busbars
• Dedicated DC grounding connection
• Suitable for 12V, 24V and 48V systems
• M10 busbar connections for high current cabling
• Ideal for Victron inverter and lithium battery installations

Technical Specifications

• Victron Part Number: LYN060404010
• Voltage Range: 9V to 60V DC
• Continuous Current Rating: 1000A
• Busbar Connection Size: M10
• Fuse Connection Size: 3/8”
• Dimensions (H x W x D): 279 x 169 x 97mm
• Weight: Approx. 2.1kg
• Enclosure Material: ABS
• Busbar Material: Tinned Copper
• Protection Rating: IP20

Important Information

• Class-T fuses sold separately
• Compatible with Victron Lynx M10 systems only
• Not compatible with Lynx M8 modules
• Suitable for indoor installation only
• Professional installation recommended
• Multiple units can be combined for larger battery bank systems

The Lynx Class-T Power In is ideal for premium campervan and off grid electrical installations where safety, scalability and professional cable management are essential. Combined with the wider Victron Lynx range, it allows for an exceptionally clean and futureproof electrical system design.

For more technical information, please visit  Victron Energy Official Website.
