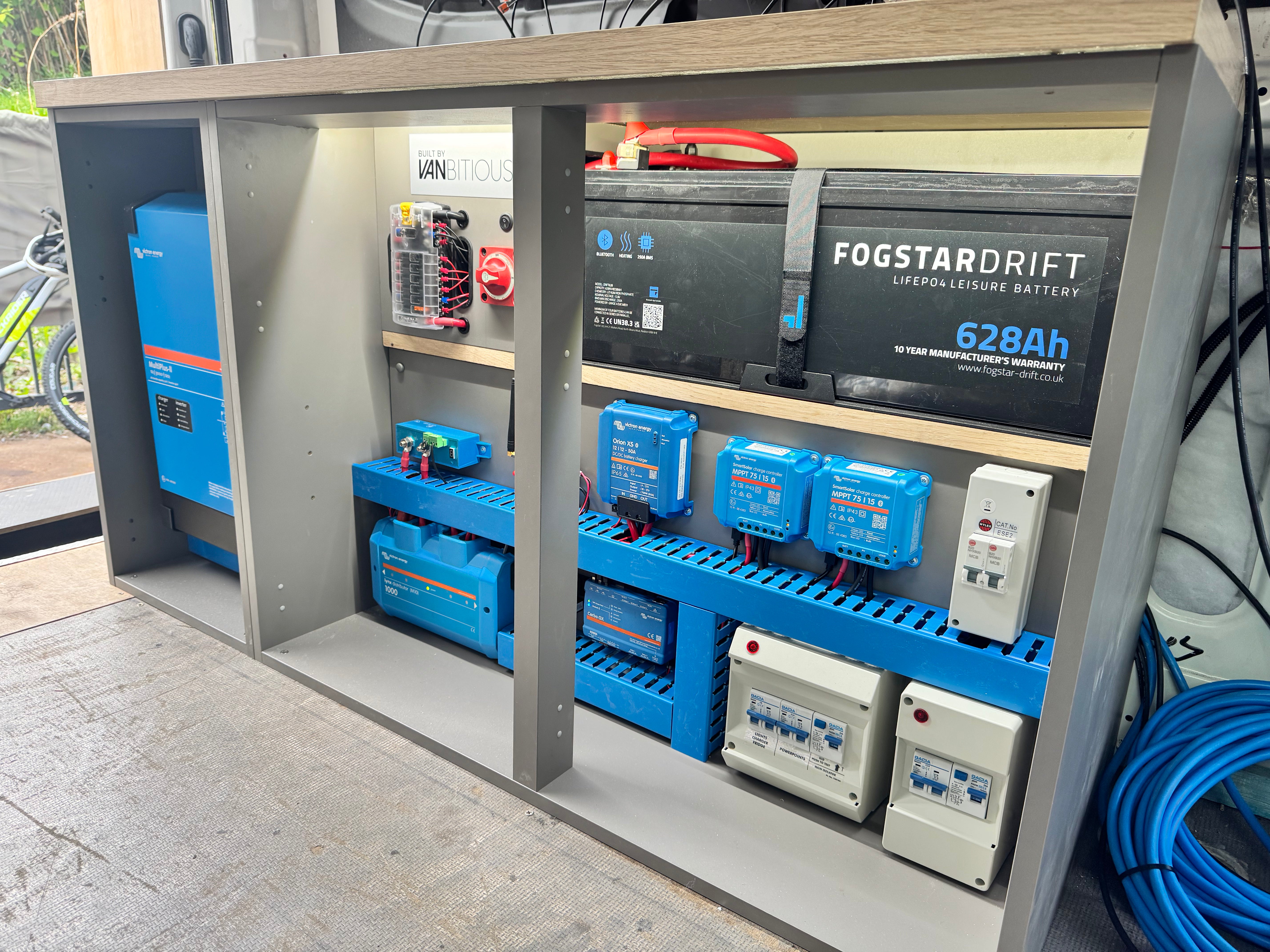

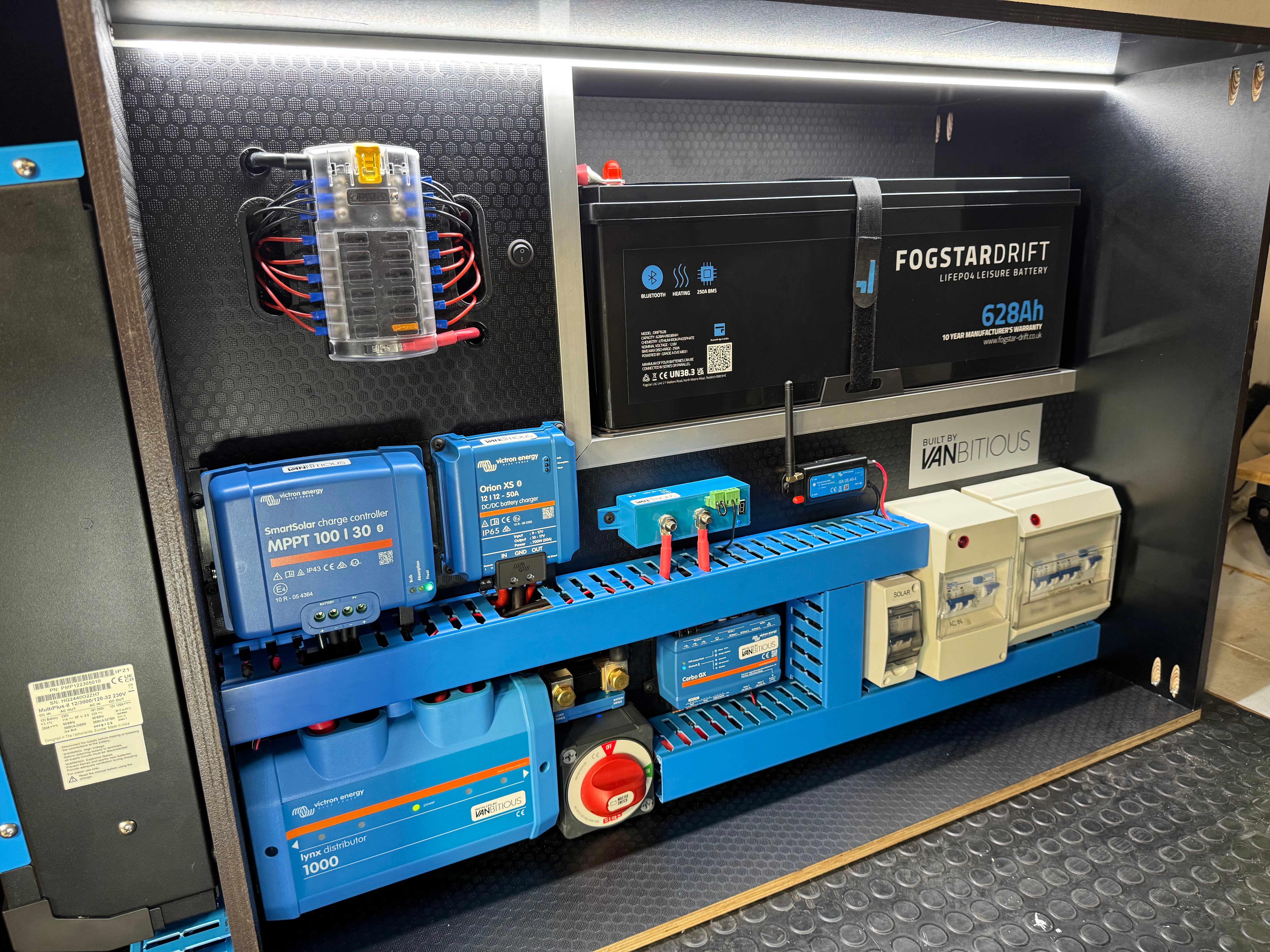

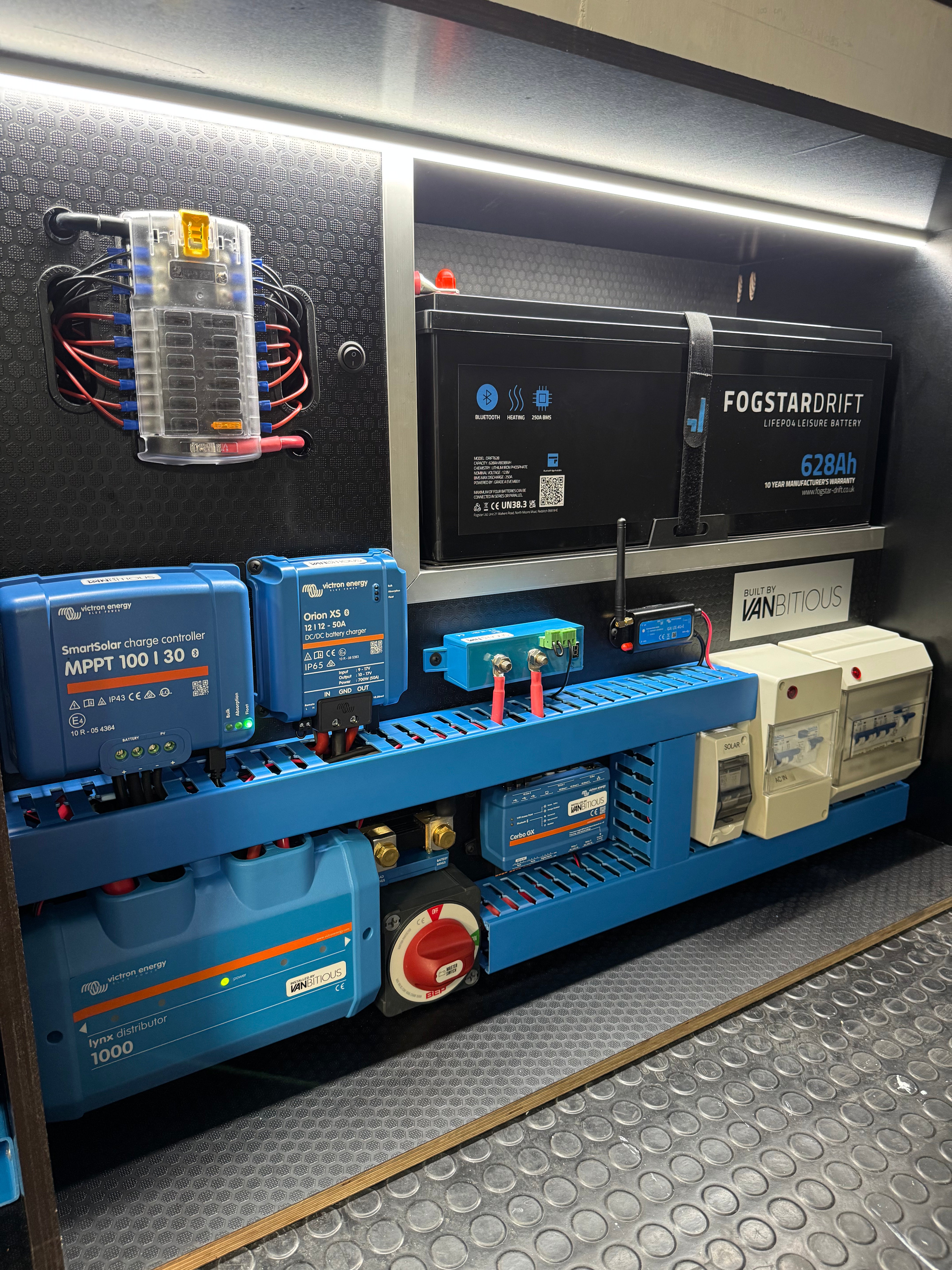

Victron Off-Grid Advanced Electrical System Kit
Our most powerful system yet — designed for full-time van life, off-grid living and long-haul travel. This system gives you complete energy independence, with enough capacity to run induction cooking, off-grid air conditioning and other high-powered appliances without relying on gas.
With a maximum continuous mains capacity of 2400W and shore power of 3000W, this kit supports extended stays in remote locations and delivers all the essentials for high-performance van electrics — backed by trusted Victron components.
You’ll receive everything needed for a full install: all major hardware, cable sets, fuse kits, brackets, connectors, and isolators are included as itemised below.
This kit comes with a FREE INSTALLATION GUIDE!
Kit Highlights
- Supports high-powered mains appliances (up to 2400W off-grid)
- Choice of high-capacity lithium batteries (460Ah or 628Ah)
- Fast charging from mains, solar and vehicle alternator
- Complete Victron integration with app-based monitoring
- Suitable for full-time travel and all-electric setups
Choose Your Battery
Select one battery from the following options:
- 1x Fogstar Drift 460Ah Lithium Battery
- 1x Fogstar Drift 628Ah Lithium Battery
- 1x Fogstar Drift Pro Gen 2 460Ah Lithium Battery
- 1x Fogstar Drift Pro Gen 2 628Ah Lithium Battery
Included Components
Victron Core System
- 1x Victron Energy MultiPlus Inverter/Charger
- 1x Victron Energy Cerbo GX Mk2
- 1x Victron GX Touch 50 Display
- 1x Victron Orion XS 12/12-50A DC-DC Charger
- 1x Victron SmartShunt 500A/50mV
- 1x Victron Smart BatteryProtect 12/24V-100A
- 1x Victron Lynx Distributor
- 1x Victron VE.Direct Cable – 1.8m
- 1x Victron RJ45 UTP Cable – 1.8m
- 1x Victron MEGA Fuse 60A
- 1x Victron MEGA Fuse 80A
- 2x Victron MEGA Fuse 400A
- 1x Victron MIDI Fuse 60A
12V & AC Distribution
- 1x Blue Sea 12-Way Fuse Box
- 1x BEP 400A Battery Isolation Switch
- 1x Mains Consumer Unit – Deluxe (AC Out)
- 1x Mains Consumer Unit – Standard (Hook-up)
- 1x Black Flush Fitting Mains Inlet
- 1x Complete Mains Hook-up Wiring Kit
- 1x Earth Cable (Green/Yellow) – 6mm²
Battery Cabling & Protection
- 2m Flexible Battery Cable – 95mm² (Red)
- 2m Flexible Battery Cable – 95mm² (Black)
- 5m Flexible Battery Cable – 20mm² (Red)
- 2m Flexible Battery Cable – 20mm² (Black)
- 1x Flexible Cable – 6mm² (Red)
- 1x Flexible Cable – 6mm² (Black)
- 1x Heat Shrink Bundle Kit
- 2m Blue Trunking – 50x50
- 1x Fogstar Battery Bracket with Strap
Cables, Connectors & Terminals
- 10x R95-8 Copper Tube Terminal
- 2x R95-10 Copper Tube Terminal
- 2x R95-12 Copper Tube Terminal
- 6x R16-6 Copper Tube Terminal
- 7x R16-8 Copper Tube Terminal
- 5x R6-8 Copper Tube Terminal
- 1x Blue Fork Terminal (3.2mm / 6BA)
- 20x Self Tapping Screws – 10 x 1/2” (Black)
- 10x Wago Compact Lever Connector – 2-Way
- 5x Wago Compact Lever Connector – 3-Way
Other Wiring
- 10m 3-Core Arctic Blue Cable – 2.5mm²
- 50m 2-Core 2.5mm² Flat Automotive Cable
Fuses
- 1x Assorted Blade Fuses – Pack of 30
What Makes This Kit Different?
- Fully integrated Victron system with app control and remote monitoring.
- Supports full-time off-grid use with powerful lithium storage.
- AC and DC protection, solar, split-charge and smart control in one.
- All major parts, cables, mounts and accessories included.
- Supplied for professional installation or advanced DIY builds.
Up to 628Ah Capacity
3000W Max Wattage
5" Touch Display
Bluetooth & WiFiConnect
