Complete Digital Switching & Battery Monitoring for Campervans and Motorhomes

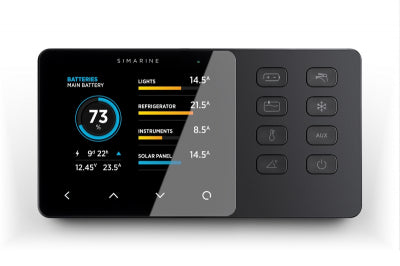

Take complete control of your campervan's electrical system with the Simarine VIA Digital Switching Panel. Combining intelligent digital switching, advanced battery monitoring and a premium touchscreen interface, the VIA system replaces multiple switches, gauges and monitoring displays with one beautifully designed control centre.

Designed specifically for modern campervan, motorhome and RV installations, the VIA allows you to control lighting, water pumps, heating, refrigeration and other 12V appliances while providing accurate real time information on your electrical system, battery capacity, solar charging, water tanks and temperatures.

With its sleek anodised aluminium construction, high resolution IPS display and intuitive interface, the VIA integrates seamlessly into any high end conversion.

Intelligent Control at Your Fingertips

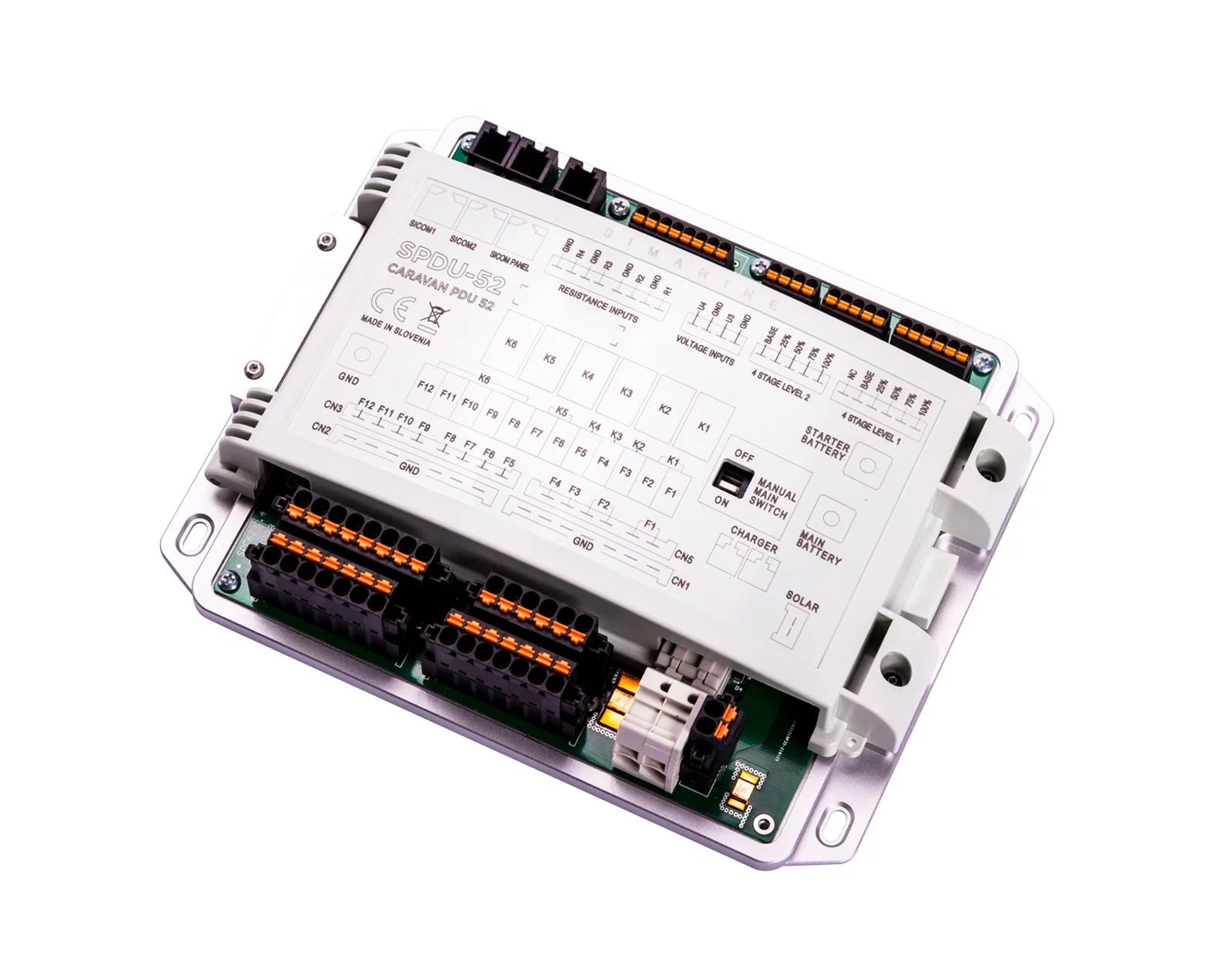

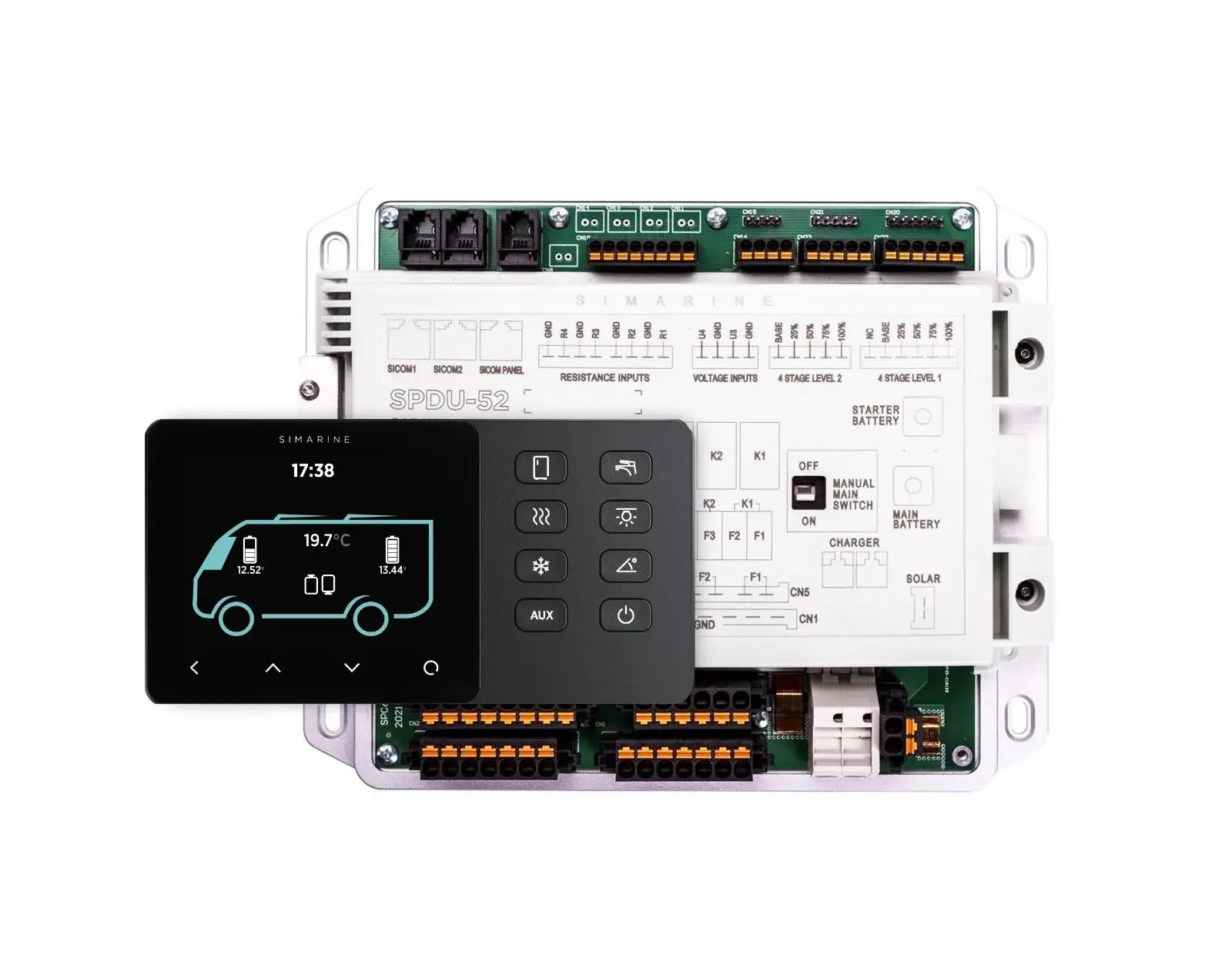

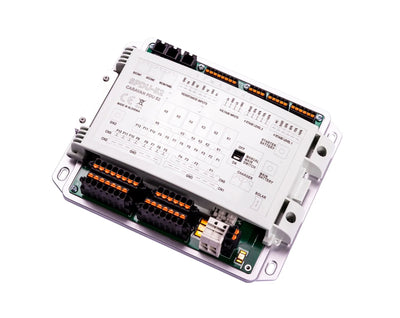

The VIA system works alongside the included SPDU52 Power Distribution Unit, providing:

• Digital switching for up to 6 independent output channels
• Integrated power distribution with 12 fused circuits
• Built in battery monitoring
• Solar charging monitoring
• Shore power monitoring
• DC to DC charger monitoring
• Manual override switches for emergency operation
• Expandable architecture for future upgrades

Advanced Battery Monitoring

Know exactly how much power you have available with industry leading battery analytics.

Monitor:

• Battery voltage
• State of Charge (SOC)
• Remaining amp hours
• Charge and discharge current
• Estimated remaining runtime
• Battery compartment temperature

Ideal for lithium, AGM and lead acid battery systems.

Complete Camper Monitoring

The VIA system is capable of monitoring much more than just your batteries.

It supports:

• Fresh water tanks
• Grey water tanks
• Fuel tanks
• Interior and exterior temperatures
• Solar charging
• Shore charger input
• DC to DC charging
• Vehicle inclination (with optional sensor)

Calibrate tank levels to provide highly accurate litre readings rather than simple quarter tank indicators.

Expandable System

As your electrical installation grows, the VIA grows with it.

Compatible with additional Simarine expansion modules allowing monitoring of:

• Up to 6 battery banks
• Up to 24 current shunts
• Up to 14 tank level sensors
• Up to 10 temperature sensors
• Inclinometer sensors
• Additional power monitoring modules

Smartphone Connectivity

Configure, monitor and update your system using the free Simarine mobile app via integrated WiFi.

View live system data, customise switching functions and install firmware updates directly from your smartphone.

Premium Features

• Elegant anodised aluminium front panel
• High resolution IPS touchscreen
• Optically bonded anti reflective display
• Automatic display brightness adjustment
• Integrated WiFi
• Extremely low standby power consumption
• Modern minimalist appearance suitable for premium campervan conversions

Technical Specifications

• Operating Voltage: 6 to 22V DC (panel)
• SPDU52 Operating Voltage: 8 to 22V DC
• 6 digital switching outputs
• 12 fused circuits
• Main battery shunt: 50A
• Shore charger shunt: 40A
• Solar shunt: 16A
• WiFi connectivity
• Compatible with Simarine expansion modules
• Integrated manual override switches
• Operating Temperature: -20°C to +70°C

Perfect For

• VW Crafter
• MAN TGE
• Volkswagen Transporter
• Mercedes Sprinter
• Fiat Ducato
• Motorhomes
• Expedition vehicles
• Off grid campervan conversions
