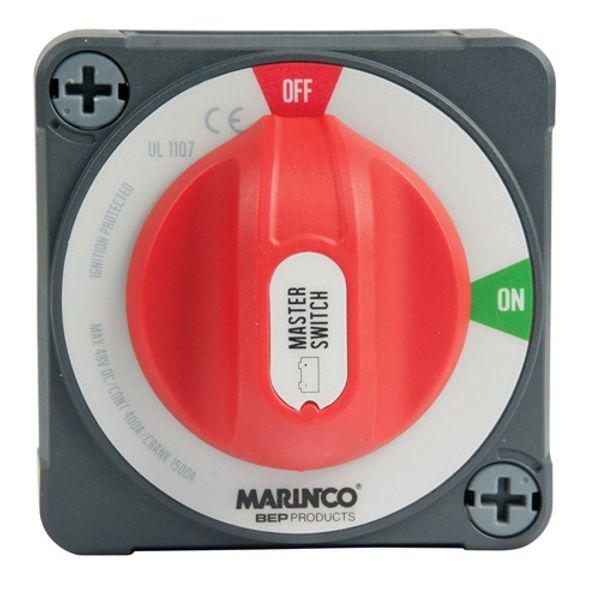

BEP 770-EZ Pro Installer 400A EZ-Mount Battery Switch

The BEP 770-EZ Pro Installer Battery Switch provides reliable, high-capacity battery isolation for 12–48V DC marine electrical systems. Its innovative EZ-Mount design allows the switch to be wired from the front, making installation faster and providing easier access to heavy battery cables.

The switch shares the same interconnection height as the BEP Pro Installer busbar range, allowing compatible components to be linked together for a compact installation. Engineered for demanding marine environments, it features UV-stabilised fibre-reinforced construction, corrosion-resistant hardware and an IP66-rated enclosure.

Key Features

• Simple On/Off battery isolation
• Convenient front-access wiring
• EZ-Mount three-step installation
• Surface mounting
• Compatible with BEP Pro Installer busbars and link bars
• Two tinned-copper 10mm (3/8") connection studs
• Stainless-steel nuts and washers
• Removable control knob for isolation during servicing
• Three removable protective side plates
• UV-stabilised fibre-reinforced construction
• Industry-standard 98 × 98mm footprint
• IP66 rated
• UL1107 ignition-protected
• CE marked

Specifications

• Continuous rating: 400A DC
• Intermittent rating: 600A DC for 5 minutes
• Cranking rating: 1500A DC for 10 seconds
• Maximum voltage: 48V DC
• Suitable systems: 12–48V DC
• Operation: On/Off
• Connections: 2 × 10mm (3/8") studs
• Dimensions: 98 × 98 × 92mm
• Mounting: Surface mount only

Please note: Unlike the standard BEP 770, the 770-EZ is surface mounted only. Its front-wiring design is intended for compact installations and direct integration with compatible BEP Pro Installer busbars.
